Omni-SimStad API Documentation

The Omni-SimStad Django application serves as the core database manager and state engine for the public SimStad exhibit. It acts as a specialized subsystem under the umbrella of the larger Omni Backend Ecosystem, which coordinates multi-display, interactive installations.

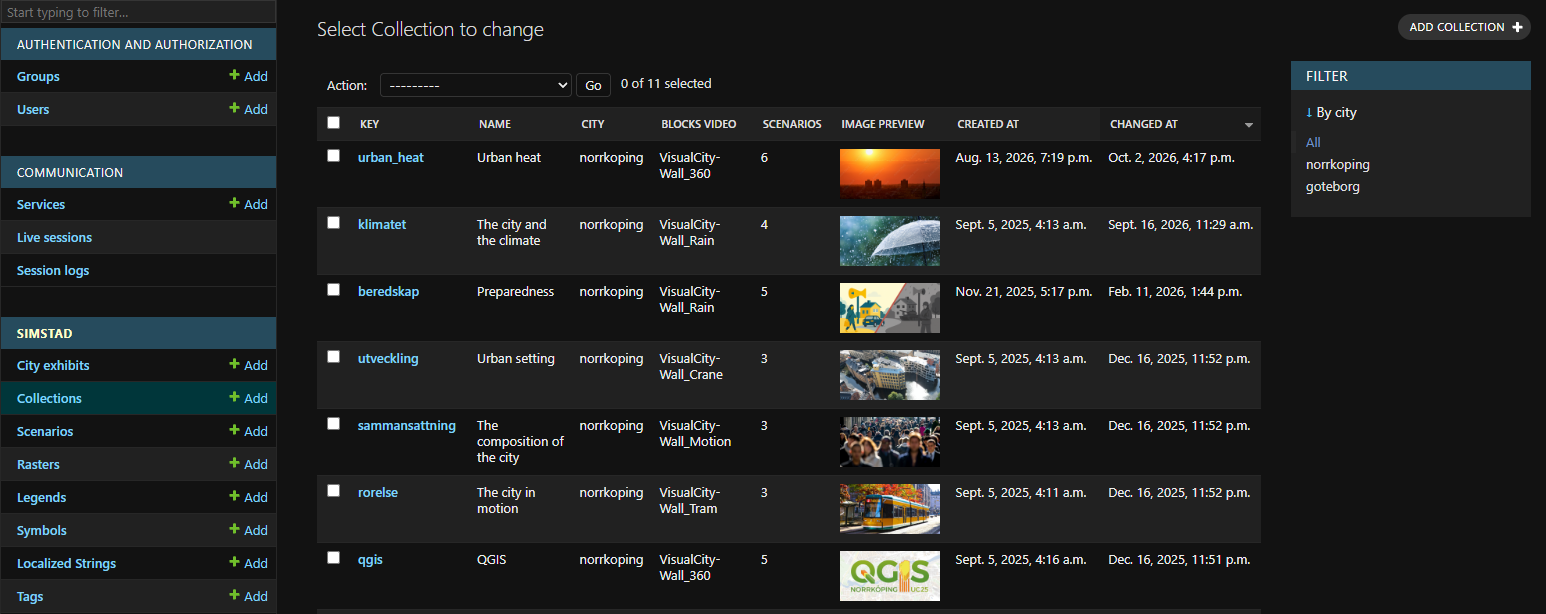

While administrative stakeholders (engineers and pedagogues) use the Django Admin panel to alter spatial layers, legends, and metadata, the frontend exhibit nodes and interactive screens query this API in real time to fetch data payloads. Additionally, specific server-rendered routes are consumed by external hardware—such as PixiLab Blocks monitors—to dynamically output active legends.

---

1. Architectural Overview & Context

   ┌────────────────────────────────────────────────────────┐
   │                  OMNI BACKEND SYSTEM                   │
   │  (Unified ecosystem for multi-display infrastructure)  │
   └───────────────────────────┬────────────────────────────┘
                               │
                               ▼
 ┌──────────────────────────────────────────────────────────────┐
 │                    OMNI-SIMSTAD SERVER                       │
 ├──────────────────────────────┬───────────────────────────────┤
 │     Django Admin Panel       │         REST API              │
 │  (Engineers & Pedagogues)    │  (Exhibition Interfaces)      │
 └──────────────────────────────┴──────────────┬────────────────┘
                                               │
                       ┌───────────────────────┴───────────────────────┐
                       ▼                                               ▼
         ┌───────────────────────────┐                   ┌───────────────────────────┐
         │ Interactive Exhibit Nodes │                   │   PixiLab Blocks Screens  │
         │   (Cities / Scenarios)    │                   │   (Dynamic HTML Legends)  │
         └───────────────────────────┘                   └───────────────────────────┘

The server manages a hierarchical data matrix optimizing geographic, temporal, and spatial visualization sequences. The core engine models map data via discrete raster types (Images, Videos, Vector Flows, and Live Network Device Interface (NDI) streams) structured across predefined exhibition domains.

---

2. API Endpoint Registry

All endpoints expect a base target matching your environment routing and return standardized JSON arrays or object payloads unless specified otherwise.

Exhibition Hierarchy & Configuration

Method	Endpoint	Description	Payload Type
GET	/get_cities/	Fetches all active exhibition city instances.	Array
GET	/get_city/<str:city_key>/	Retrieves complete structural configuration for a targeted city.	Object
GET	/get_collections/	Fetches collection groupings that tie scenarios into coherent themes.	Array
GET	/get_collection/<str:collection_key>/	Retrieves data and scenario lists mapped to a single theme.	Object

Spatial & Layer Content Engines

Method	Endpoint	Description	Payload Type
GET	/get_scenarios/	Fetches global scenarios list across all installations.	Array
GET	/get_scenario/<str:scenario_key>/	Pulls a scenario configuration along with its layered rendering matrix.	Object
GET	/get_rasters/	Lists comprehensive image, video, and stream metadata assets.	Array
GET	/get_raster/<str:raster_key>/	Pulls explicit system-paths, thumbnails, and key properties for a raster.	Object

Legends, Tags, and Localizations

Method	Endpoint	Description	Payload Type
GET	/get_legends/	Fetches tabular legend objects.	Array
GET	/get_legend/<str:legend_key>/	Pulls entries, color hex arrays, and symbols for a legend.	Object
GET	/get_symbols/	Fetches list of all validated UI symbology graphics.	Array
GET	/get_symbol/<str:symbol_key>/	Pulls a single symbology asset file link.	Object
GET	/get_tags/	Returns structural classification tags used to organize rasters.	Array
GET	/get_tag/<str:tag_key>/	Returns a specific tag resource object.	Object
GET	/get_localization/	Compiles a full map of interface-agnostic key-value strings for UI rendering.	Object

Dynamic Screen Routing

Method	Endpoint	Description	Response Type
GET	/legend/<str:scenario_key>/	Server-rendered view outputting the current map legend layout.	HTML
GET	/legend/<str:scenario_key1>/<str:scenario_key2>/	Server-rendered comparison view displaying a side-by-side or combined legend layout.	HTML

---

3. Core Data Object Mappings

When interacting with the API, returned objects follow specific structural conventions based on the relational schema of the backend:

City

Defines a geographic coordinate canvas based on the Swedish coordinate system system (SWEREF 99 TM), tracking UI orientation parameters and fallback loops.

• key (String): Unique alphanumeric system handle.
• name (String): Public exhibit title.
• service (Integer/ID): Reference ID linking the client node to its real-time WebSocket communication broker.
• min_x / max_x / min_y / max_y (Float): Bounding box limits for geographic tracking.
• orientation (String): Camera layout orientation relative to the physical city mockup table (north, east, south, west).
• raster_width / raster_height (Integer): Resolution specifications of the display canvas in pixels.
• default_blocks_video (String): Path to video loops rendered on standby when the client connection sits idle.

Scenario & Layers

Scenarios determine exactly how informational visual maps parse onto screen components. The scenario specifies a layout behavior: stacked (where layers blend together using specific attributes) or sequential (which provisions a timeline/slider matrix based on sequence_labels).

A Scenario object exposes a nested sequence of Layer configurations sorted by order. Every layer object includes specialized parameters based on its type:

{
  "key": "traffic-evolution-2026",
  "name": "Traffic Evolution Analysis",
  "layer_display_mode": "sequential",
  "sequence_title": "Select Target Horizon Year",
  "layers": [
    {
      "type": "image",
      "order": 1,
      "opacity": 0.85,
      "emission": 0.2,
      "crop_type": "slice",
      "crop_data": {
        "type": "slice",
        "slice": { "min_u": 0.0, "max_u": 0.5, "min_v": 0.0, "max_v": 1.0 }
      },
      "raster": "base-map-layer"
    },
    {
      "type": "flow",
      "order": 2,
      "opacity": 1.0,
      "flow_scale": 1.5,
      "flow_speed": 2.0,
      "raster": "vector-velocity-map",
      "flow_texture": "particle-noise-texture"
    },
    {
      "type": "ndi",
      "order": 3,
      "ndi_stream": "LIVE_SIM_FEED_01",
      "ndi_machine": "RENDER_NODE_LEFT"
    }
  ]
}

⚠️ Layer Validation Constants

• Image Layers: Require a raster asset whose media_type is validated strictly as image.

• Flow Layers: Require a primary base raster (image) and an accompanying flow_texture (image) to calculate vector paths.

• Movie Layers: Require a raster asset whose media_type is validated strictly as video.

• Color Layers: Generate flat vector solid shapes based on hex codes parsed through the color attribute.

• NDI Layers: Leverage live network streams and require ndi_stream fields filled to bypass storage loops entirely.

Raster Assets

The Raster engine handles standard mapping layers and automatically generates minimaps and thumbnails upon modification:

• media_type: Disambiguates whether the core asset follows the image or video schema validation loop.
• image / video: Native paths targeting static resource allocations.
• minimap / thumbnail: Automatically generated scaling outputs used for rendering local UI navigation assets on client panels.

---

4. Hardware Integrations (PixiLab Blocks Monitors)

To accommodate structural screens that frame map models, Omni-SimStad uses explicit server-side templates via specialized endpoints:

Single Legend Canvas

GET /legend/<scenario_key>/

Parses the legend or legend_image property bound to a requested Scenario. If utilizing custom elements, it reads related nested LegendEntry values, delivering matching symbols and hexadecimal color indicators straight to digital displays.

Dual Comparison Canvas

GET /legend/<scenario_key1>/<scenario_key2>/

Processes dual scenario configurations to construct side-by-side matrices or composite comparative layouts on displays configured around multi-option interactives.

---
